保密安全紙

<繁體中文版>

透過非授權拷備公司機密資訊,例如製程、配方、參數等,需要時間不斷反覆測試可得的
最佳化方式。除了手機相機翻拍外,紙張的拷備也是商業機密外洩的方式之一。而絕大部
的科技業者因為近年來導入金屬感應門的應用,手機相機乃至於隨身碟都可有效防範,而
紙張可能記載機密資訊的問題,卻一直被企業輕忽。

導入辦公室無紙化,而重要資訊則透過保密紙等實體方式保留,是目前最新穎的應用。目
前已研發完成的保密紙,在金屬感應門下,大約相當於名片大小的紙樣即可被測得。從而
可減少商業機密被非授權重製疑慮。

保密紙原理:

紙張內植入非晶體金屬(Co,Ni,Fe,Al),將金屬絲與紙漿混合,並製成紙樣,成形烘乾後,
表面再貼合纖維層,可供影印或列印。此紙張具有永久磁性或暫時磁性,可被防盜門測得
。或可被金屬感應器測得。

為使紙樣可在安檢X機測得,紙樣可塗佈對X光有高吸收率材質,則在X光掃描時可測得特
定字樣,以確認紙樣來源及存放位置。

同時具備可被金屬安檢門測得,或被安檢X光機測得,使商業機密保密能有效達成。

<English>

Key data regarding the optimization of manufacturing processes like formulas and
parameters require a huge amount of repeat testing to come by but can easily leaked
through unauthorized means. The most note-worthy is in images taken by handheld
devices, but with the introduction of metal detection into facilities, devices with camera
functionality or even USB sticks are well probed these days. However enterprises
often overlook the leak of hardcopy documents, and it too can carry valuable information.

 Going paperless is one way of achieving full security. But for those confidential
information that can only be kept in physical form, detectable paper is the latest and
greatest solution. The most advanced technology enables the paper of the size of a
business card to be detected by the metal detector. With that layer of scrutiny, the risk
of confidential information being distributed without authorization is minimized.

How detectable paper works:
In the manufacturing, the pulp is mixed amorphous metal (Co, Ni, Fe, Al) and later
shaped and dried into paper form. An additional layer of fiber is adhered to give it the
same copying and printing properties as regular papers. Depending on the use, the
end-product can be permanently or temporarily magnetic and thus detestable by security
gates or metal detectors.

To enable the paper to be detected by security X-ray scanners, the paper can be coated
with X-ray absorbing materials. Detection of that material generates a specific reading
on the scanner to allow prompt identification and obtainment of the paper. With such a
document that is detectable by both metal detectors and X-ray scanners, whatever
commercially sensitive information on it can be firmly secured.

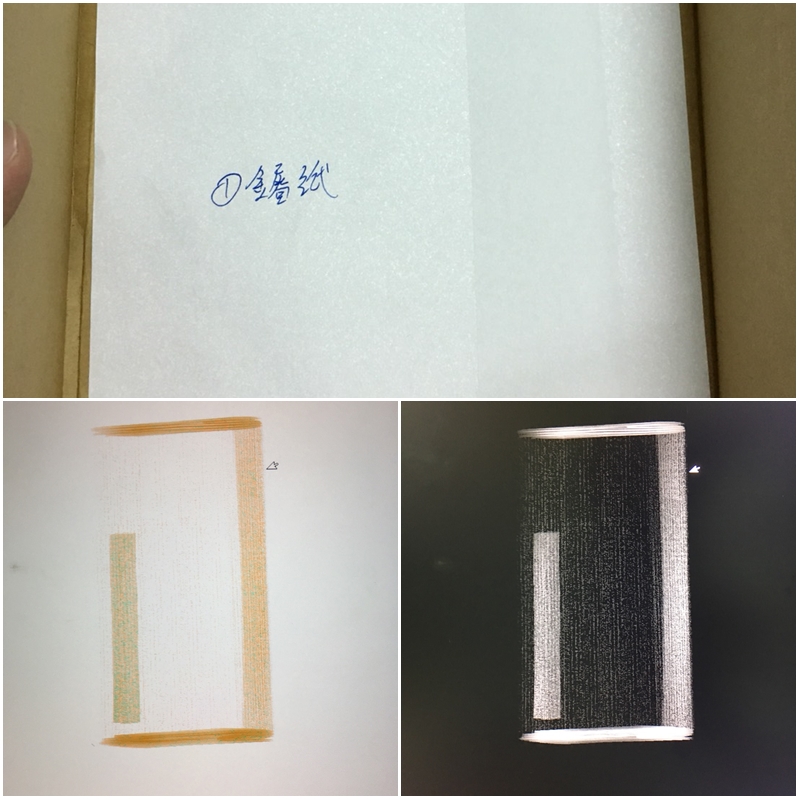

(1) 紙樣外觀
(2) 行李X光機掃描彩色模式 註:因塗層非常薄不能讓紙張厚度增加太多,故在行李X光機下影像需開
啟強化模式,材質會判斷為有機物(橘色)
(3) X光負片模式下(Reverse),可看到塗佈材質吸收X光(白色)。塗佈層若印刷上字樣則可呈現紙樣來源。

無塵紙標準:SGS 報告編號:UM/2017/C0087
以IES-RP-CC003.3方法,以漢姆克滾筒粒子數分析儀檢測:
≧0.3μm,測試結果33.4
≧0.5μm,測試結果21.8
≧1.0μm,測試結果9.00

摩擦測試:SGS 報告編號:UM/2018/30117
以IES-RP-CC003.3方法,以漢姆克滾筒粒子數分析儀檢測:
≧0.3μm,測試結果1210
≧0.5μm,測試結果775
≧1.0μm,測試結果349

搓揉測試:SGS 報告編號:UM/2018/30118
以IES-RP-CC003.3方法,以漢姆克滾筒粒子數分析儀檢測:
≧0.3μm,測試結果2170
≧0.5μm,測試結果1840
≧1.0μm,測試結果1500

拉扯搓揉測試:SGS 報告編號:UM/2018/30119
以IES-RP-CC003.3方法,以漢姆克滾筒粒子數分析儀檢測:
≧0.3μm,測試結果2320
≧0.5μm,測試結果2020
≧1.0μm,測試結果1660

靜電測試:SGS 報告編號:UM/2018/20045
本測試參考EN-55011方法,以靜電計檢測。測試結果:2.00

殘膠測試:PIDC 報告編號:107A011-J311353R1
1.熱老化試驗後之外觀判定成品測試
試驗結果:以目前觀察與手觸摸測試後樣品周圍,無溢膠情況。

ROHS :SGS 報告編號:KA/2018/21220
參考IEC 62321-5:2013方法,以感應耦合電漿原子發射光譜儀檢測。
鎘、鉛、汞、六價鉻、多溴聯苯總和等,皆未檢出(n.d.)。
